Hydrogen Fuel Cell


                                                               Hydrogen fuel cell



A fuel cell uses the chemical energy of hydrogen or other fuels to cleanly and efficiently produce electricity. If hydrogen is the fuel, the only products are electricity, water, and heat. Fuel cells are unique in terms of the variety of their potential applications; they can use a wide range of fuels and feedstocks and can provide power for systems as large as a utility power station and as small as a laptop computer.

Why choose Hydrogen fuel cells

Fuel cells can be used in a wide range of applications, providing power for applications across multiple sectors, including transportation, industrial/commercial/residential buildings, and long-term energy storage for the grid in reversible systems.

Fuel cells have several benefits over conventional combustion-based technologies currently used in many power plants and vehicles. Fuel cells can operate at higher efficiencies than combustion engines and can convert the chemical energy in the fuel directly to electrical energy with efficiencies capable of exceeding 60%. Fuel cells have lower or zero emissions compared to combustion engines. Hydrogen fuel cells emit only water, addressing critical climate challenges as there are no carbon dioxide emissions. There also are no air pollutants that create smog and cause health problems at the point of operation. Fuel cells are quiet during operation as they have few moving parts.



How Fuel Cells Work

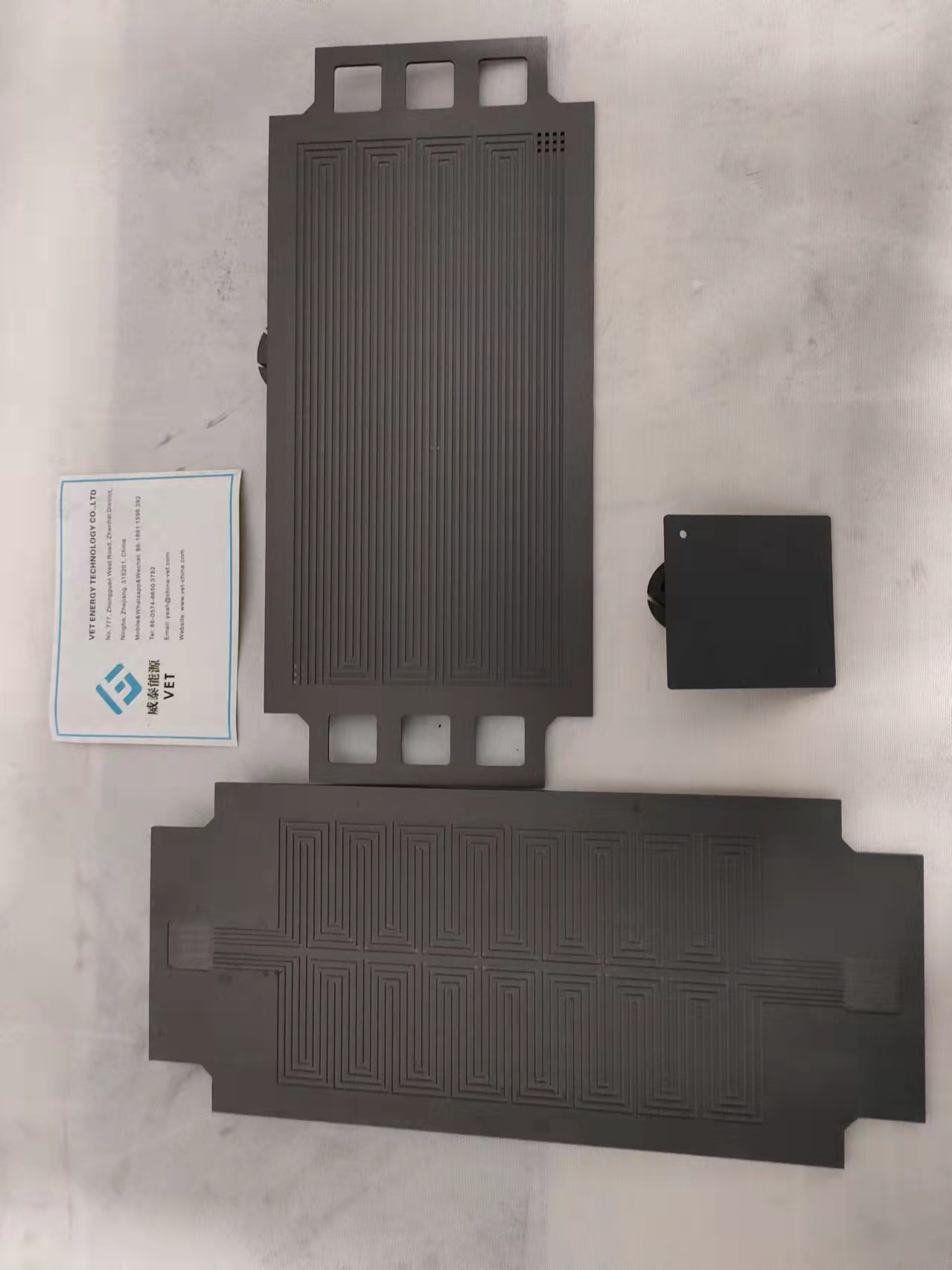

Graphite electrode plate details
Points for Attention:

The function of bipolar plate (also known as diaphragm) is to provide gas flow channel, prevent the collusion between hydrogen and oxygen in the battery gas chamber, and establish a current path between the Yin and Yang poles in series. On the premise of maintaining a certain mechanical strength and good gas resistance, the thickness of bipolar plate should be as thin as possible to reduce the conduction resistance to current and heat
Carbonaceous materials. Carbonaceous materials include graphite, molded carbon materials and expanded (flexible) graphite. The traditional bipolar plate adopts dense graphite and is machined into gas channel· The graphite bipolar plate has stable chemical properties and low contact resistance with mea.
Bipolar plates need proper surface treatment. After nickel plating on the anode side of the bipolar plate, the conductivity is good, and it is not easy to be wetted by the electrolyte, which can avoid the loss of electrolyte. The flexible contact between the electrolyte diaphragm and the bipolar plate outside the effective area of the electrode can effectively prevent the gas from leaking out, which is the so-called “wet seal”. In order to reduce the corrosion of molten carbonate on stainless steel at the “wet seal” position, the bipolar plate frame needs to be “aluminized” for protection

Processing length of single plate Processing width of single plate Processing thickness of single plate Minimum thickness for processing single plate Recommended operating temperature
 customized customized  0.6-20mm  0.2mm  ≤180℃
 Density  Shorehardness  Shorehardness  FlexuralStrength  Electricalresistivity
 >1.9g/cm3  >1.9g/cm3  >100MPa  >50MPa  <12µΩm
Impregnationprocess1 Impregnationprocess2 Impregnationprocess3
The minimum thickness for processing single plate is 0.2mm.1KG/KPA without leakage The minimum thickness for processing single plate is 0.3mm.2KG/KPA without leakage The minimum thickness for processing single plate is 0.1mm.1KG/KPA without leakage



 54

Prof. yeah

For work inquiries:  yeah@china-vet.com

86-189 1159 6392

qwq(1)

Ningbo VET Energy Technology Co., Ltd (Miami Advanced Material Technology Co., LTD)is the energy department of VET Group, which is a national high-tech enterprise specializing in the research and development, production, sales and service of fuel cell parts, such as hydrogen fuel cellstack, hydrogen generator, membrane electrode assembly, bipolar plate, PEM electrolyzer, fuel cell system, catalyst, BOP part, carbon paper andother accessories.

Over the years, passed ISO 9001:2015 international quality management system,we have gathered a group of experienced and innovative industry talents and R & D teams, and have rich practical experience in product design and engineering applications.

One of the main components of hydrogen fuel cell is graphite fuel electrode plates. In 2015,VET entered the fuel cell industry with its advantages of producing graphite fuel electrode plates.Founded company Miami Advanced Material Technology Co., LTD.

After years of research and development, vet have mature technology for producing 10w-6000w Hydrogen fuel cells. Over 10000w fuel cells powered by vehicle are being developed to contribute to the cause of energy conservation and environmental protection.As for the biggest energy storage problem of new energy, we put forward the idea that PEM converts electric energy into hydrogen for storage and hydrogen fuel cell generates electricity with hydrogen. It can be connected with photovoltaic power generation and hydropower generation.
